Product Summary

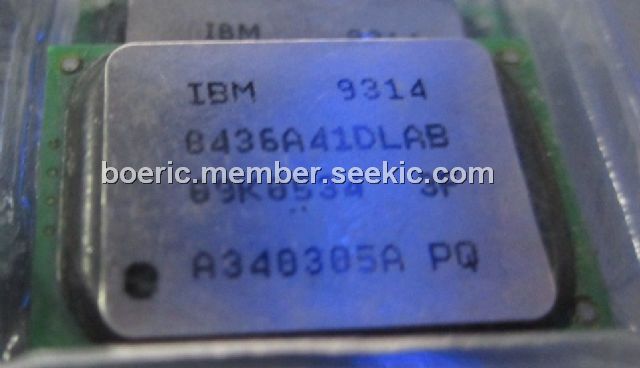

The IBM0436A41DLAB-3F is a synchronous pipeline mode, high-performance CMOS static random access memory that is versatile, has wide I/O, and can achieve 3ns cycle times. Dual differential K clocks of the IBM0436A41DLAB-3F are used to initiate the read/write operation and all internal operations are self-timed.
Parametrics
IBM0436A41DLAB-3F absolute maximum ratings: (1)Power Supply Voltage: -0.5 to 4.3 V; (2)Output Power Supply Voltage: -0.5 to 2.825 V; (3)Input Voltage: -0.5 to 4.3 V; (4)DQ Input Voltage: -0.5 to 2.825 V; (5)Operating Temperature: 0 to 85 ℃; (6)Junction Temperature: 110 ℃; (7)Storage Temperature: -55 to +125 ℃; (8)Short Circuit Output Current: 25 mA.
Features
IBM0436A41DLAB-3F features: (1)8Mb: 256K x 36 or 512K x 18 organizations; (2)4Mb: 128K x 36 or 256K x 18 organizations; (3)0.25 Micron CMOS technology; (4)Synchronous pipeline mode of operation with self-timed late write; (5)Single differential high-speed transceiver logic (HSTL) Clock; (6)+3.3V power supply, ground, 2.1V VDDQ, and 1.0V VREF; (7)HSTL input and output levels; (8)Registered addresses, write enables, synchronous select, and data-ins; (9)Registered outputs; (10)Common I/O; (11)Asynchronous output enable; (12)Synchronous power down input; (13)Boundary scan using limited set of JTAG 1149.1 functions.
Diagrams
