Product Summary

The MDD-1020A is a subsystem module which contains an input digital register, ultra high speed current output D/A convert, deglitcher, timing, internal references, and output buffering with a 3"×4"×0.5" case. The output of the device is an ultra linear analog representation of the digital input. Requiring only external gain and offset potentiometers for final calibration, the MDD-1020A D/A solves the glitch problem associated with high speed D/A converters.

Parametrics

MDD-1020A specifications: (1)accuracy at maximum word rate of 20MHZ: ±0.05%; (2)logic level/load: 1 standard "s" TTL load ; (3)positive logic binary: "1"=+2.4v to +5v; "0"=0to 0.4v; (4)operating temperature: 0 ℃ to 70℃; (5)storage temperature: -55 ℃ to 85℃.

Features

MDD-1020A features: (1)ultra high speed: 20MHZ word rate; (2)8 and 10bit versions available; (3)TTL compatible; (4)smallest size available: 3"×4"×0.5"; (5)completely self-contained with input register, D/A, deglitcher, timing, internal references, and output buffering.

Diagrams

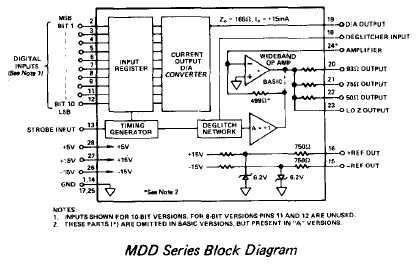

MDD-1020A block diagram
