Product Summary

The XCV1000E-6BG560I is a Field Programmable Gate Array. It delivers high-performance, high-capacity programmable logic solutions. Dramatic increases in silicon efficiency result from optimizing the new architecture for place-and-route efficiency and exploiting an aggressive 6-layer metal 0.18 μm CMOS process. These advances make the XCV1000E-6BG560I powerful and flexible alternatives to mask-programmed gate arrays.

Parametrics

XCV1000E-6BG560I absolute maximum ratings: (1)Number of Gates: 1569178; (2)Number of I /O: 158; (3)Number of Logic Blocks/Elements: 6144; (4)Delay Time: 6.0nS; (5)Package / Case: 240-HQFP; (6)Voltage: 1.8V; (7)Operating Temperature: -40 ~ 100℃; (8)Lead Free Statu:s Contains Lead; (9)RoHS Status: RoHS Non-Compliant.

Features

XCV1000E-6BG560I features: (1)1 Mb of internal configurable distributed RAM; (2)Up to 832 Kb of synchronous internal block RAM; (3)True Dual-Port BlockRAM capability; (4)Memory bandwidth up to 1.66 Tb/s (equivalent bandwidth of over 100 RAMBUS channels); (5)Designed for high-performance Interfaces to External Memories; (6)200 MHz ZBT SRAMs; (7)200 Mb/s DDR SDRAMs; (8)Supported by free Synthesizable reference design.

Diagrams

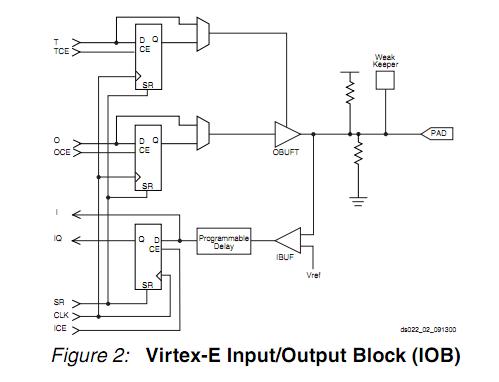

XCV1000E-6BG560I block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

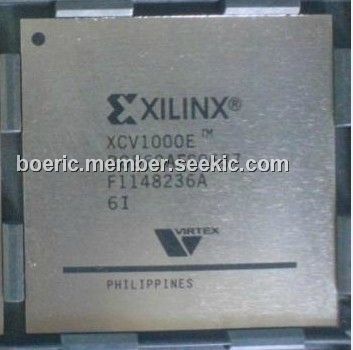

XCV1000E-6BG560I
XCV1000E-6BG560I


IC FPGA 1.8V I-TEMP 560-MBGA

Data Sheet

0-1: $1,254.60
