Product Summary
The AD6634BBC is a multimode 4-channel digital receive signal processor (RSP) capable of processing up to two WCDMA channels. Each channel of AD6634BBC consists of four cascaded signal processing elements: a frequency translator, two fixed coefficient decimating filters, and a programmable coefficient decimating filter. The applications of AD6634BBC include: Multicarrier, Multimode Digital Receivers, GSM, IS136, EDGE, PHS, IS95, UMTS, CDMA2000, Micro and Pico Cell Systems, Software Radios, Wireless Local Loop and Smart Antenna Systems In Building Wireless Telephony.
Parametrics
AD6634BBC maximum ratings: (1)Supply Voltage: 3.6 V; (2)Input Voltage: –0.3 V to +5.3 V (5 V Tolerant); (3)Output Voltage Swing: –0.3 V to VDDIO +0.3 V; (4)Load Capacitance: 200 pF; (5)Junction Temperature Under Bias: 125℃; (6)Storage Temperature Range: –65℃ to +150℃; (7)Lead Temperature (5 sec): 280℃.
Features
AD6634BBC features: (1)80 MSPS Wideband Inputs (14 Linear Bits Plus Three RSSI); (2)Processes Two WCDMA Channels or Four GSM/EDGE, IS136 Channels; (3)Four Independent Digital Receivers in a Single Package; (4)Dual 16-Bit Parallel Output Ports; (5)Dual 8-Bit Link Ports; (6)Programmable Digital AGC Loops with 96 dB Range; (7)Digital Resampling for Noninteger Decimation Rates; (8)Programmable Decimating FIR Filters; (9)Interpolating Half-Band Filters; (10)Programmable Attenuator Control for Clip Prevention.

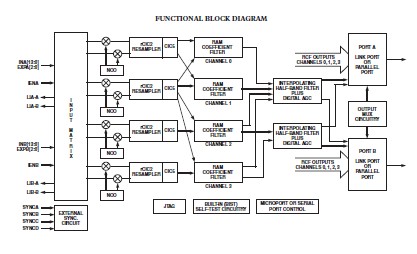

Diagrams
