Product Summary

The EP3C80F780C8 is a high functionality, low power and low cost FPGA. Based on Taiwan Semiconductor Manufacturing Company (TSMC) low-power (LP) process technology, silicon optimizations and software features to minimize power consumption, the EP3C80F780C8 provides the ideal solution for your high-volume, low-power, and cost-sensitive applications.

Parametrics

EP3C80F780C8 absolute maximum ratings: (1)Supply voltage for internal logic: –0.5 to 1.8 V; (2)Supply voltage for output buffers: –0.5 to 3.9 V; (3)Supply (analog) voltage for PLL regulator: –0.5 to 3.75 V; (4)Supply (digital) voltage for PLL: –0.5 to 1.8 V; (5)DC input voltage: –0.5 to 3.95 V; (6)DC output current, per pin: –25 to 40 mA; (7)Electrostatic discharge voltage using the human body model: ±2000 V; (8)Electrostatic discharge voltage using the charged device model: ±500 V; (9)Storage temperature: –65 to 150 ℃.

Features

EP3C80F780C8 features: (1)Configuration security using advanced encryption standard (AES) with 256-bit volatile key; (2)Routing architecture optimized for design separation flow with the QuartusR II software: Design separation flow achieves both physical and functional isolation between design partitions; (3)Ability to disable external JTAG port; (4)Error Detection (ED) Cycle Indicator to core: Provides a pass or fail indicator at every ED cycle, Provides visibility over intentional or unintentional change of configuration random access memory (CRAM) bits.

Diagrams

EP3C80F780C8 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

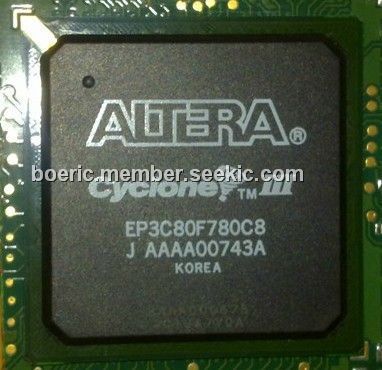

EP3C80F780C8
EP3C80F780C8

IC CYCLONE III FPGA 80K 780FBGA
Data Sheet
0-36: $147.42
EP3C80F780C8N
EP3C80F780C8N

IC CYCLONE III FPGA 80K 780FBGA
Data Sheet
0-1: $147.42
