Product Summary

The MAX232ACSE line driver/receiver is intended for all EIA/TIA-232E and V.28/V.24 communications interfaces, particularly applications where ±12V is not available. These parts are especially useful in battery-powered systems, since their low-power shutdown mode reduces power dissipation to less than 5μW. The MAX232ACSE use no external components and are recommended for applications where printed circuit board space is critical.

Parametrics

MAX232ACSE absolute maximum ratings: (1)Supply Voltage (VCC): -0.3V to +6V; (2)V+: (VCC - 0.3V) to +14V; (3)V-: +0.3V to +14V; (4)Input Voltages, TIN: -0.3V to (VCC - 0.3V); (5)RIN: ±30V; (6)RIN: ±25V; (7)TOUT: ±15V; (8)Output Voltages, TOUT: ±15V; ROUT: -0.3V to (VCC + 0.3V); (9)Driver/Receiver Output Short Circuited to GND: Continuous; (10)Continuous Power Dissipation (TA = +70℃), 16-Pin Plastic DIP (derate 10.53mW/℃ above +70℃): 842mW; (11)Operating Temperature Ranges: -55℃ to +125℃; (12)Storage Temperature Range: -65℃ to +160℃; (13)Lead Temperature (soldering, 10s): +300℃.

Features

MAX232ACSE features: (1)For Low-Voltage, Integrated ESD Applications: +3.0V to +5.5V, Low-Power, Up to 1Mbps, True RS-232 Transceivers Using Four 0.1μF External Capacitors; (2)For Low-Cost Applications: ±15kV ESD-Protected, +5V, 1μA,; (3)Single RS-232 Transceiver with AutoShutdown.

Diagrams

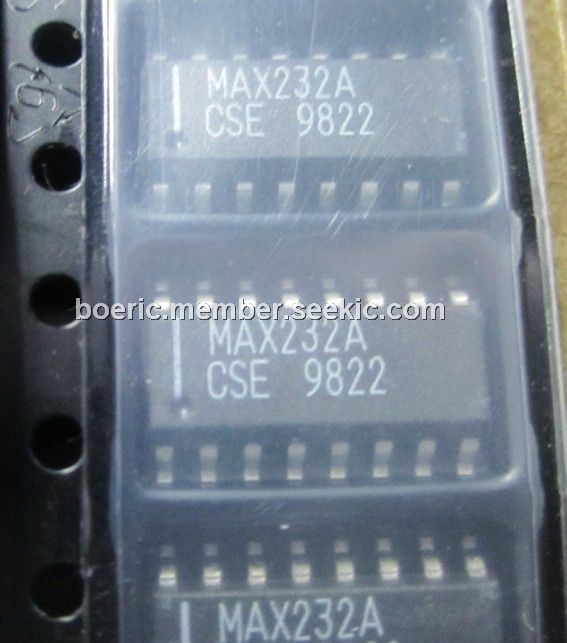

MAX232ACSE overview

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MAX232ACSE
MAX232ACSE
Maxim Integrated Products
RS-232 Interface IC
Data Sheet
Negotiable
MAX232ACSE+
MAX232ACSE+
Maxim Integrated Products
RS-232 Interface IC 5V MultiCh RS-232 Driver/Receiver
Data Sheet
0-1: $3.86
1-25: $2.57
25-50: $1.86
50-250: $1.82
MAX232ACSE+T
MAX232ACSE+T
Maxim Integrated Products
RS-232 Interface IC 5V MultiCh RS-232 Driver/Receiver
Data Sheet
0-2080: $1.60
2080-2500: $1.60
MAX232ACSE-T
MAX232ACSE-T
Maxim Integrated Products
RS-232 Interface IC
Data Sheet
Negotiable
