Product Summary

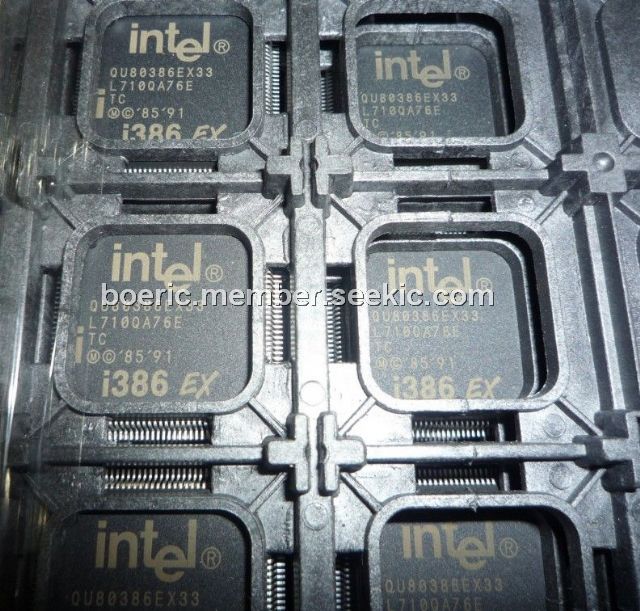

The QU80386EXTC-33 is a embedded processor. It is operates at 20 or 25 MHz at 3 Volts nominal. And it operates at 25 or 33 MHz at 5 Volts.
Parametrics
Absolute maximum ratings: (1)Storage Temperature: –65℃ to +150℃; (2)Supply Voltage with Respect to VSS: –0.5 V to 6.5 V; (3)Voltage on Other Pins: –0.5 V to VCC + 0.5 V; (4)VCC (Digital Supply Voltage): 4.5 V to 5.5 V; (5)FOSC (Operating Frequency): 0 MHz to 33 MHz.
Features
Features: (1)Transparent Power-management System Architecture; (2)Powerdown Mode; (3)Full 32-bit Internal Architecture; (4)Runs Intel386 Architecture Software in a Cost-effective 16-bit Hardware Environment; (5)High-performance 16-bit Data Bus; (6)Extended Temperature Range; (7)Integrated Memory Management Unit; (8)Virtual 8086 Mode Allows Execution of 8086 Software in a Protected and Paged System; (9)Large Uniform Address Space; (10)On-chip Debugging Support Including Breakpoint Registers; (11)Complete System Development Support; (12)High Speed CHMOS Technology.
Diagrams
 |
 QU80386EXTB25 |
|
IC INT PROC 3.3V 25MHZ 132QFP |
Data Sheet |
Negotiable |
|
||||
|
QU80386EXTC25 |
|
IC INT PROC 5V 25MHZ 132QFP |
Data Sheet |
Negotiable |
|
||||
|
QU80386EXTC33 |
|
IC INT PROC 5V 33MHZ 132QFP |
Data Sheet |
Negotiable |
|
||||
 |
QU80386SXTA25 |
|
IC MPU 32-BIT 5V 25MHZ 100-QFP |
Data Sheet |
Negotiable |
|
||||
|
QU80386SXTA33 |
|
IC MPU 32-BIT 5V 33MHZ 100-QFP |
Data Sheet |
Negotiable |
|
||||
|
QU80386SXTA40 |
|
IC MPU 32-BIT 5V 40MHZ 100-QFP |
Data Sheet |
Negotiable |
|
||||
