Product Summary
The VMEbus interface controller VIC068A-UC is a single chip designed to minimize the cost and board area requirements and to maximize performance of the VMEbus interface of a VMEbus master/slave module. This can be implemented on VIC068A-UC either an 8-bit, 16-bit, or 32-bit VMEbus system.
Parametrics
VIC068A-UC absolute maximum ratings: (1)Commercial: 0 to +70℃, 5V ± 5%; (2)Industrial: –40 to +85℃, 5V ± 10%; (3)Military: –55 to +125℃, 5V ± 10%.
Features
VIC068A-UC features: (1)Refresh option for local DRAM; (2)Four broadcast location monitors; (3)Four module-specific location monitors; (4)Eight interprocessor communications registers; (5)PGA or QFP packages; (6)Compatible with IEEE Specification 1014, Rev. C; (7)Supports RMC operations; (8)Supports read, write, write posting, and block transfers; (9)Accommodates VMEbus timing requirements with internal digital delay line (1/2-clock granularity); (10)Programmable metastability delay; (11)Programmable data acquisition delays; (12)Provides timeout timers for local bus and VMEbus transactions.

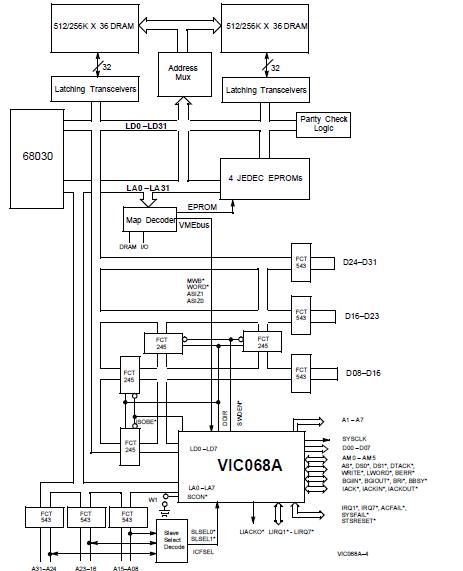

Diagrams
 |
 VIC068A |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
VIC068A-GMB |
Other |
|
Data Sheet |
Negotiable |
|
||||
