Product Summary

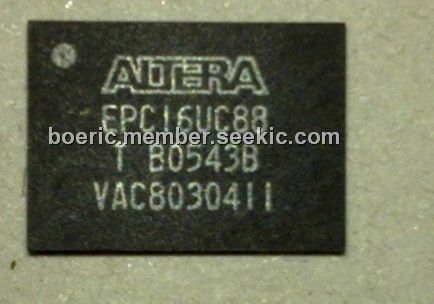

The EPC16UC88 is a single-device, high-speed, advanced configuration solution for very high-density FPGAs. The core of an enhanced configuration device is divided into two major blocks, a configuration controller and a flash memory. The EPC16UC88 is used to store configuration data for systems made up of one or more Altera FPGAs. Unused portions of the flash memory can be used to store processor code or data that can be accessed via the external flash interface after FPGA configuration is complete.
Parametrics
EPC16UC88 absolute maximum ratings: (1)VCC, Supply voltage With respect to ground: -0.5 to 4.6 V; (2)VI,DC input voltage With respect to ground: -0.5 to 3.6 V; (3)IMAX, DC VCC or ground current: 100 mA; (4)IOUT, DC output current, per pin: -25 to 25 mA; (5)PD, Power dissipation: 360 mW; (6)TSTG, Storage temperature No bias: -65 to 150℃; (7)TAMB, Ambient temperature Under bias: -65 to 135℃; (8)TJ, Junction temperature Under bias: 135℃.
Features
EPC16UC88 features: (1)External flash interface supports parallel programming of flash and external processor access to unused portions of memory ; (2)Flash memory block/sector protection capability via external flash interface; (3)Supported in EPC16 and EPC4 devices; (4)Page mode support for remote and local reconfiguration with up to eight configurations for the entire system; (5)Compatible with Stratix series Remote System Configuration feature; (6)Supports byte-wide configuration mode fast passive parallel (FPP); 8-bit data output per DCLK cycle; (7)Supports true n-bit concurrent configuration (n = 1, 2, 4, and 8) of Altera FPGAs; (8)Pin-selectable 2-ms or 100-ms power-on reset (POR) time; (9)Configuration clock supports programmable input source and frequency synthesis.

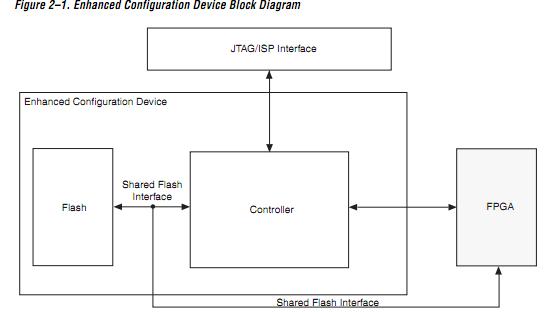

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 EPC16UC88 |
Altera |
IC CONFIG DEVICE 16MBIT 88-UBGA |
Data Sheet |
|
|
||||||
|
EPC16UC88AA |
Altera |
IC CONFIG DEVICE 16MBIT 88-UBGA |
Data Sheet |
Negotiable |
|
||||||
|
EPC16UC88N |
Altera |
IC CONFIG DEVICE 16MBIT 88-UBGA |
Data Sheet |
|
|
||||||
