Product Summary

The VS-500-LFF-GNN-622.080 is a SAW based voltage controlled oscillator that operates at the fundamental frequency of the internal SAW filter. It is housed in a hermetically sealed J-lead surface mount package offered on tape and reel. It has an output disable to facilitate on-board testing.

Parametrics

Absolute maximum ratings: (1)input impedance (LV-PECL or PECL), ZC: 100kΩ typ; (2)input impedance (ECL), ZC: 10kΩ typ; (3)operating temperature, Topr: -40 to 85℃; (4)outputs current, Iout: 20mA max; (5)supply current (No load), ICC; 55mA typ; 80mA max.

Features

Features: (1)Improved High Performance ASIC; (2)Industry Standard Package, 9 x 14 x 4.5 mm; (3)Output Frequencies from 155 MHz to 850 MHz; (4)3.3 V or 5.0 V Operation; (5)At 155.52 MHz, Jitter < 0.50 ps-rms (12 kHz to 20 MHz); (6)At 622.08 MHz, Jitter < 0.30 ps-rms (50 kHz to 80 MHz); (7)LV-PECL, PECL, or ECL Configurations; (8)Complementary Outputs; (9)Output Disable Feature.

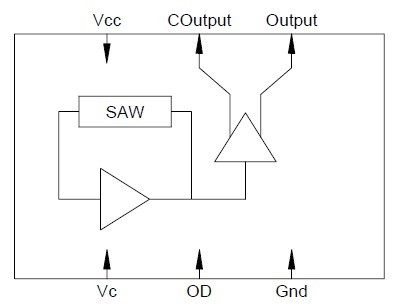

Diagrams
