Product Summary

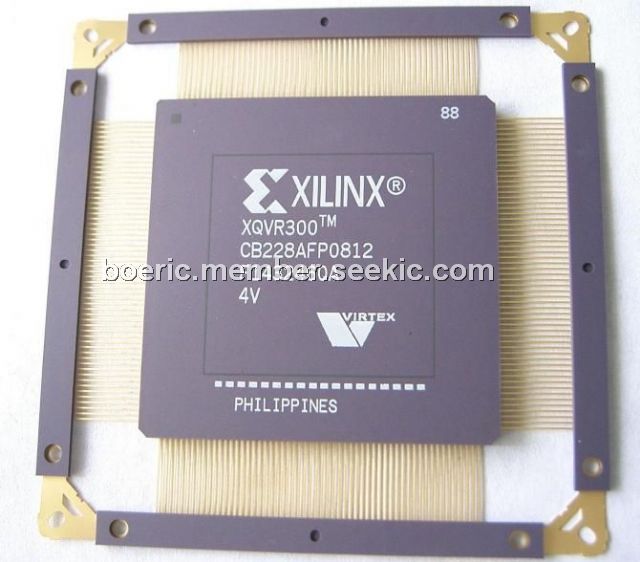

The XQVR300-4CB228V is a QPro Virtex 2.5V Radiation Hardened FPGA. It delivers high-performance, high-capacity programmable logic solutions. Dramatic increases in silicon efficiency result from optimizing the new architecture for place-and-route efficiency and exploiting an aggressive 5-layer-metal 0.22 μm CMOS process. These advances make XQVR300-4CB228V powerful and flexible alternatives to mask-programmed gate arrays.
Parametrics
XQVR300-4CB228V absolute maximum ratings: (1)Supply voltage relative to GND: –0.5 to 3.0 V; (2)Supply voltage relative to GND: –0.5 to 4.0 V; (3)Input reference voltage: –0.5 to 3.6 V; (4)Input voltage relative to GND: Using VREF: –0.5 to 3.6 V, Internal threshold: –0.5 to 5.5 V; (5)Voltage applied to 3-state output: –0.5 to 5.5 V; (6)Longest supply voltage rise time from 1V to 2.375V: 50 ms; (7)Storage temperature (ambient): –65 to +150 ℃; (8)Junction temperature: +150 ℃.
Features
XQVR300-4CB228V features: (1)0.22 μm 5-layer epitaxial process; (2)QML certified; (3)Radiation hardened FPGAs for space and satellite applications; (4)Guaranteed total ionizing dose to 100K Rad(si); (5)Latch-up immune to LET = 125 MeV cm2/mg; (6)SEU immunity achievable with recommended redundancy implementation; (7)Guaranteed over the full military temperature range (-55℃ to +125℃); (8)Fast, high-density Field-Programmable Gate Arrays: Densities from 100k to 1M system gates, System performance up to 200 MHz, Hot-swappable for Compact PCI; (9)Multi-standard SelectI/O interfaces: 16 high-performance interface standards, Connects directly to ZBTRAM devices.

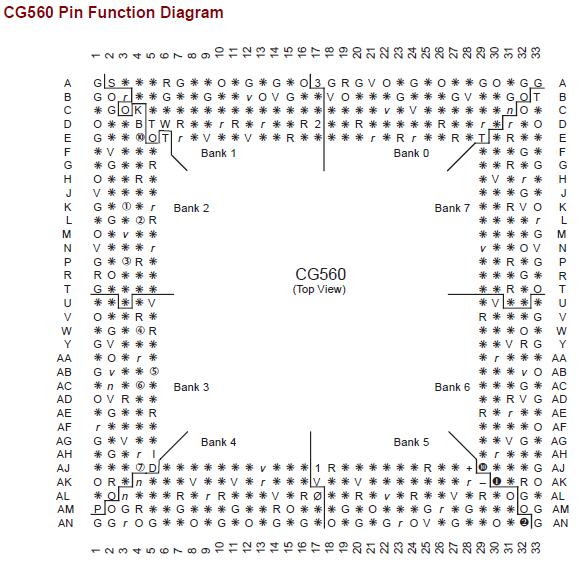

Diagrams
 |
