Product Summary
The GMZ4S is the third generation, highly integrated real-time video graphics scaling IC intended primarily for use with pixelated displays, such as LCD monitors, Plasma Displays, and LCD/DMD Projectors. The GMZ4S provides a high level of integration by assembling a high quality zoom and shrink scaling engine, frame rate conversion, an on-screen display (OSD) controller, a microprocessor and many other functions in a single device. This simplifies the implementation of multi-synchronous display controller systems, with lower cost and faster time to market.
Parametrics
GMZ4S absolute maximum ratings: (1)Supply Voltage VDD: 0 to 4.2 V; (2)Input Voltage VIN: -0.6 to 5.5 V; (3)Electrostatic Discharge VESD: ±2.0 kV; (4)Latchup ILA: ±100 mA; (5)Ambient Operating Temperature TA: 0 to 70 ℃; (6)Storage Temperature TSTG: -40 to 125 ℃; (7)Operating Junction Temp. TJ: 0 to 125 ℃; (8)Thermal Resistance: (Junction to Air), Natural Convection, θJA: 18.2 ℃/W; (9)Thermal Resistance: (Junction to Case), Convection or air flow gmZ4S θJC: 0.6 ℃/W; (10)Soldering Temperature (30 sec.) TSOL: 220 ℃; (11)Vapor Phase Soldering (30 sec.) TVAP: 220 ℃.
Features
GMZ4S features: (1)Two separate double-wide inputs (2 x 48-bits), for simultaneous (and glue-less) connections to an ADC and a TMDS interface (for SXGA and UXGA resolutions).; (2)Single input clock rate up to 108MHz (SXGA 60Hz).; (3)Double input clock rate (half-rate) up to 101MHz (UXGA 75Hz).; (4)Support for Composite SYNC input; (5)Progressive scan and vertically interlaced inputs accepted.; (6)Programmable position of captured image within input frame.; (7)Digital color control of captured data, including brightness and contrast adjustment, and gamma correction.; (8)Single or Double pixel output; (9)Up to 135 Mpixels/second; (10)Support for various aspect ratios; (11)Optional data compression with minimum quality loss for flexibility and system cost saving.

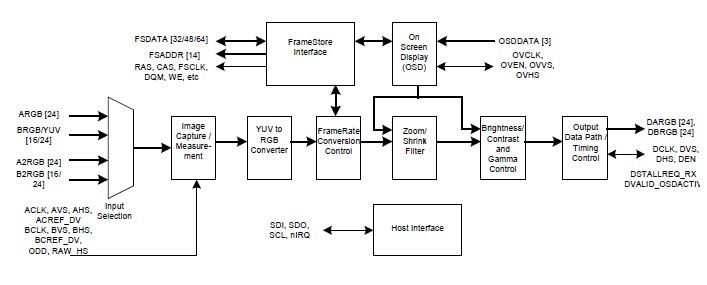

Diagrams
