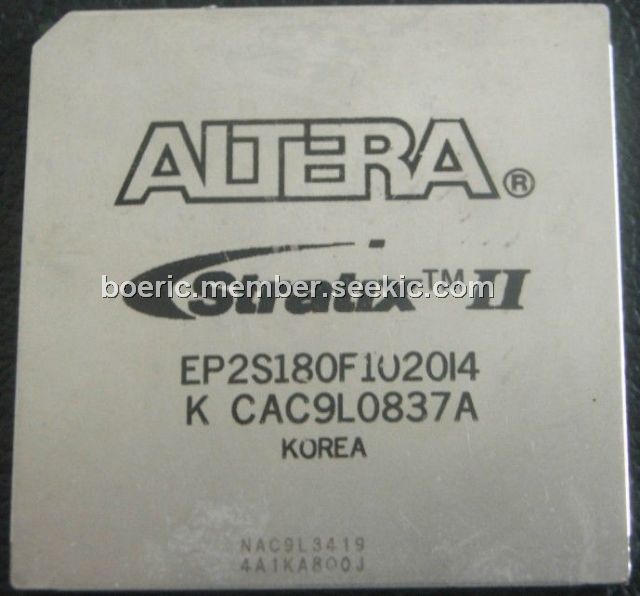

EP2S180F1020I4

Product Summary

The EP2S180F1020I4 is a FPGA. It is based on a 1.2-V, 90-nm, all-layer copper SRAM process and features a new logic structure that maximizes performance, and enables device densities approaching 180,000 equivalent logic elements (LEs). And it offers up to 9 Mbits of on-chip, TriMatrix memory for demanding, memory intensive applications and has up to 96 DSP blocks with up to 384 (18-bit × 18-bit) multipliers for efficient implementation of high performance filters and other DSP functions.

Parametrics

Absolute maximum ratings: (1)VCCINT, Supply voltage: –0.5 to 1.8 V when With respect to ground; (2)VCCIO, Supply voltage: –0.5 to 4.6 V when With respect to ground; (3)VCCPD, Supply voltage: –0.5 to 4.6 V when With respect to ground; (4)VCCA, Analog power supply for PLLs: –0.5 to 1.8 V when With respect to ground; (5)VCCD, Digital power supply for PLLs: –0.5 to 1.8 V when With respect to ground; (6)VI, DC input voltage: –0.5 to 4.6 V; (7)IOUT, DC output current, per pin: –25 to 40 mA; (8)TSTG, Storage temperature: –65 to 150 ℃ when No bias; (9)TJ, Junction temperature: –55 to 125 ℃ when BGA packages under bias.

Features

Features: (1)15,600 to 179,400 equivalent LEs; (2)New and innovative adaptive logic module (ALM), the basic building block of the Stratix II architecture, maximizes performance and resource usage efficiency; (3)Up to 9,383,040 RAM bits (1,172,880 bytes) available without reducing logic resources; (4)TriMatrix memory consisting of three RAM block sizes to implement true dual-port memory and first-in first-out (FIFO) buffers; (5)High-speed DSP blocks provide dedicated implementation of; (6)multipliers (at up to 450 MHz), multiply-accumulate functions, and finite impulse response (FIR) filters; (7)Up to 16 global clocks with 24 clocking resources per device region; (8)Clock control blocks support dynamic clock network enable/disable, which allows clock networks to power down to reduce power consumption in user mode; (9)Up to 12 PLLs (four enhanced PLLs and eight fast PLLs) per device provide spread spectrum, programmable bandwidth, clock switchover, real-time PLL reconfiguration, and advanced multiplication and phase shifting.

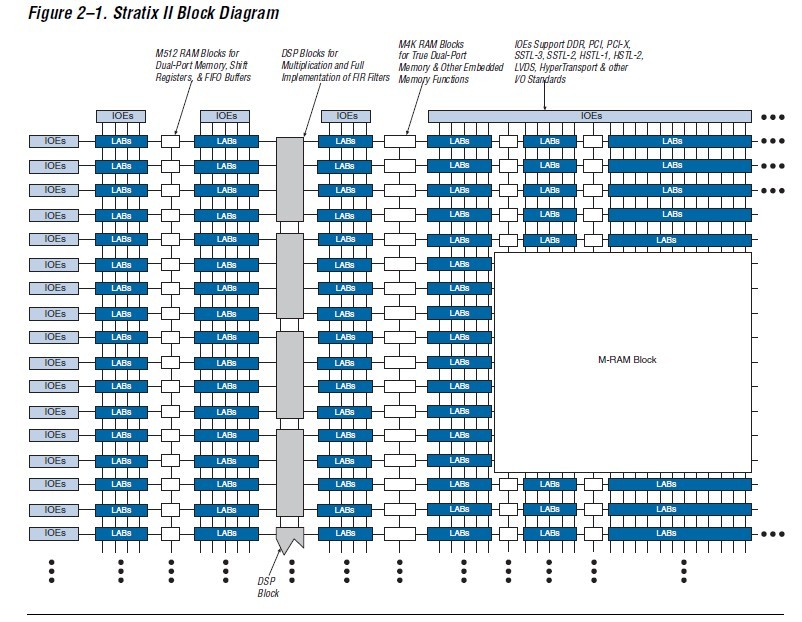

Diagrams
