Product Summary

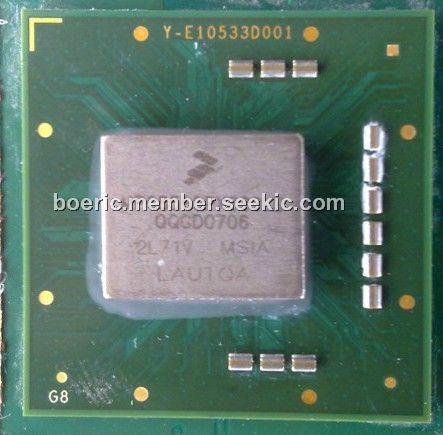

The MPC8560PX833LB is a PowerPC processor core. The MPC8560PX833LB integrates a processor that implements the PowerPC architecture with system logic required for networking, storage, and general-purpose embedded applications. For functional characteristics of the processor, refer to the MPC8560PX833LB PowerQUICC III Integrated Communications Processor Preliminary Reference Manual.

Parametrics

MPC8560PX833LB absolute maximum ratings: (1)Core supply voltage, VDD: –0.3 to 1.32V; (2)PLL supply voltage, AVDD: –0.3 to 1.32V; (3)DDR DRAM I/O voltage, GVDD: –0.3 to 3.63 V; (4)Three-speed Ethernet I/O voltage, LVDD: –0.3 to 3.63V; (5)CPM, PCI/PCI-X, local bus, RapidIO, 10/100 Ethernet,MII management, DUART, system control and power management, I2C, and JTAG I/O voltage, OVDD: –0.3 to 3.63 V 3; (6)Storage temperature range, TSTG: –55 to 150℃.

Features

MPC8560PX833LB features: (1)32-Kbyte L1 instruction cache and 32-Kbyte L1 data cache with parity protection. Caches can be locked entirely or on a per-line basis. Separate locking for instructions and data; (2)Memory management unit (MMU) especially designed for embedded applications; (3)Enhanced hardware and software debug support; (4)Performance monitor facility (similar to but different from the MPC8560 performance monitor described in Chapter 18, Performance Monitor; (5)High level/synchronous data link control (HDLC/SDLC); (6)LocalTalk (HDLC-based local area network protocol); (7)Universal asynchronous receiver transmitter (UART); (8)Synchronous UART (1x clock mode); (9)Binary synchronous communication (BISYNC); (10)Totally transparent operation.
