Product Summary

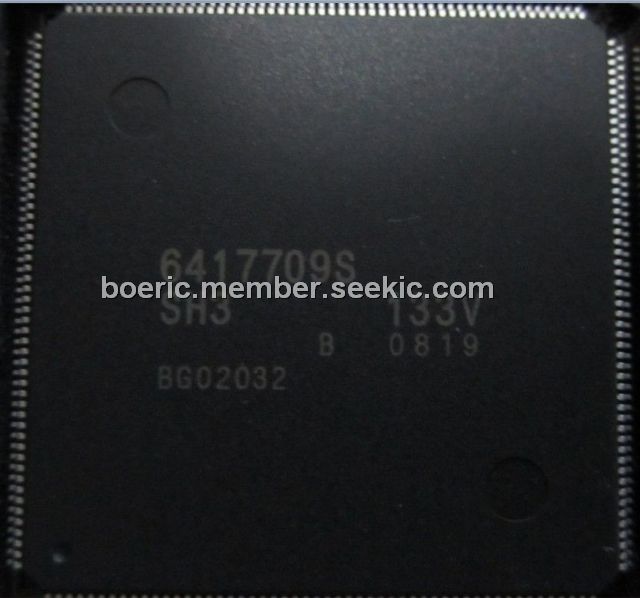

The HD6417709SF133BV is a single-chip RISC microprocessor that integrates a Renesas Technology-original RISC-type SuperHTM architecture CPU as its core that has an on-chip multiplier, cache memory, and a memory management unit (MMU) as well as peripheral functions required for system configuration such as a timer, a realtime clock, an interrupt controller, and a serial communication interface.
Parametrics
Absolute maximum ratings: (1)Power supply voltage (I/O), VccQ: –0.3 to 4.2 V; (2)Input voltage (except port L), Vin: –0.3 to VccQ + 0.3 V; (3)Input voltage (port L), Vin: –0.3 to AVcc + 0.3 V; (4)Analog power-supply voltage, AVcc: –0.3 to 4.6 V; (5)Analog input voltage, VAN: –0.3 to AVcc + 0.3 V; (6)Operating temperature, Topr: –20 to 75 ℃; (7)Storage temperature, Tstr: –55 to 125 ℃.
Features
Features: (1)Original Renesas Technology SuperH architecture; (2)Object code level with SH-1, SH-2, and SH-3 Series; (3)32-bit internal data bus; (4)Instruction execution time: one instruction/cycle for basic instructions; (5)Logical address space: 4 Gbytes; (6)Space identifier ASID: 8 bits, 256 logical address space; (7)Five-stage pipeline.
