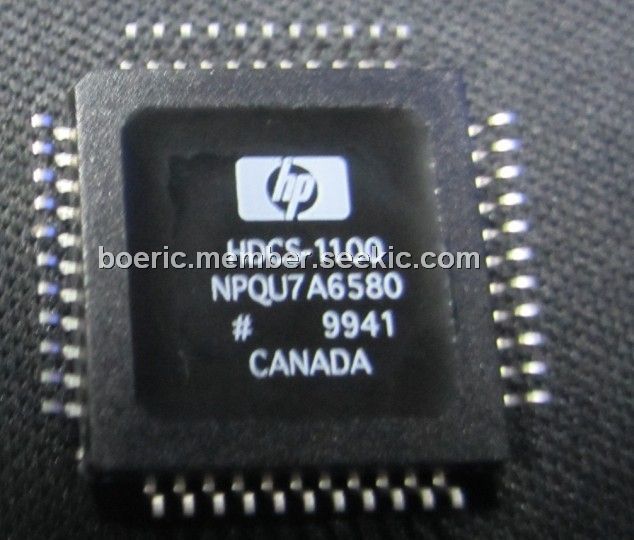

HDCS-1100

Product Summary

The HDCS-1100 is an integrated CMOS image sensor with digital output and timing controller. It is available in both color and monochrome, containing an array of 352 × 288 pixels. The HDCS-1100 offers excellent image quality with low power consumption, low dark current, high sensitivity and anti-blooming characteristics. High temperature tolerant color filter array enables machine solderability. The applications of the HDCS-1100 include: (1)Video conferencing camera; (2)Digital still camera; (3)Surveillance and security video camera; (4)Automotive; (5)Machine vision system; (6)Biometric security system(e.g., fingerprint recognition); (7)Toys.

Parametrics

HDCS-1100 absolute maximum ratings: (1)Pixel Size: 7.8 × 7.8 mm; (2)Maximum Clock Rate: 25 MHz from externally supplied clock source; (3)A/D Dynamic Range: 60 dB; (4)Pixel Signal-to-Noise Ratio (SNR): 66 dB; (5)Noise (Equivalent electrons) kTC: 36 electrons; (6)Dark Current: 0.1 nA/cm2 @ 22℃ ambient; (7)Sensitivity: 1.3 V/(Lux-sec @ 550 nm); (8)Peak Quantum Efficiency: 21%; (9)Saturation: 1.3 V; (10)Full Well Capacity: 65,000 electrons; (11)Conversion Gain: 16 μV/electron; (12)Programmable Gain Range: 1 – 40 (255 increments); (13)Fill Factor: 42%; (14)Exposure Control: 0.5 μs – 4 s in 0.5 μs steps; (15)Package: 44 pin gull wing optical PQFP; (16)Supply Voltage: 3.3 V, -5/+10%; (17)Power Consumption: 200 mW max operating; 3.3 mW max standby; (18)Operating Temperature: -5 to 65℃.

Features

HDCS-1100 features: (1)CIF (352 × 288 pixels) array size in two options. Color or monochrome versions available; (2)Random access and windowing capability to zoom to any sized window on 4 × 4 pixel boundaries; (3)Panning capability to any location within the sensor array; (4)Video rates up to 45 frames per second for CIF window size; (5)4:1 sub-sampling capability of viewing window, providing up to 162 frames per second; (6)Still image capability; (7)Mechanical shutter and flash trigger; (8)Low power/standby modes.

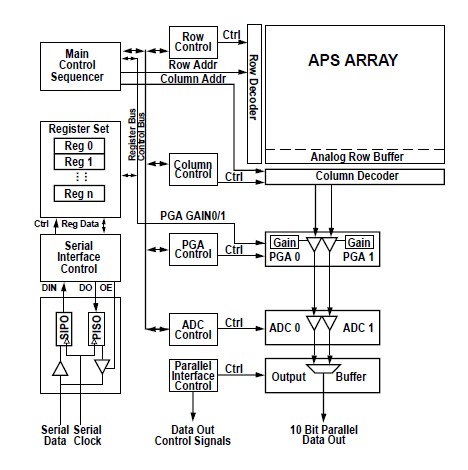

Diagrams
