Product Summary
The PM3386-BI is a dual gigabit ethernet controller. The applicaitons of the device include Core Routers, Edge Routers, Enterprise Edge Routers, Multi-Service Switches/Routers and SONET/SDH Transport Muxes.
Parametrics
PM3386-BI absolute maximum ratings: (1)Storage Temperature: -40 to +125℃; (2)Core Supply Voltage: -0.3V to +1.89V; (3)Supply Voltage: -0.3V to +3.46V; (4)Voltage on Any Pin (except D[15:0], A[10:0], CSB, RDB, WRB and ALE): -0.3V to VDDO+0.3V; (5)Voltage on D[15:0], A[10:0], CSB,RDB, WRB and ALE: -0.3V t0 5.5V; (6)Static Discharge Voltage: ±1000 V; (7)Latch-Up Current: ±100 mA; (8)DC Input Current: ±20 mA; (9)Lead Temperature: +230℃; (10)Absolute Maximum Junction Temperature: +150℃.
Features
PM3386-BI features: (1)Two port full-duplex Gigabit Ethernet Controller with an industry standard POS-PHY Level 3 system interface; (2)Provides direct connect to optics via two internal Serializer/Deserializer (SERDES); (3)Provides connection to copper Gigabit Ethernet physical layer devices via two GMII interfaces; (4)Incorporates dual SERDES, compatible to IEEE 802.3 1998 PMA physical layer specification; (5)Provides on-chip data recovery and clock synthesis; (6)Supports dual IEEE 802.3 -1998 GMII interfaces for connection to copper Gigabit Ethernet physical layer devices; (7)Provides dual standard IEEE 802.3 Gigabit Ethernet MACs for frame verification; (8)Enables frame filtering on 8 unicast or 64 multicast entries; (9)Internal 16k byte egress and 64k byte ingress FIFOs per channel to accommodate system latencies; (10)Incorporates SATURN POS-PHY Level 3 32-bit System Interface clocked up to 104 MHz (32 bit mode only); (11)Line side loopback capability for system level diagnostic capability.

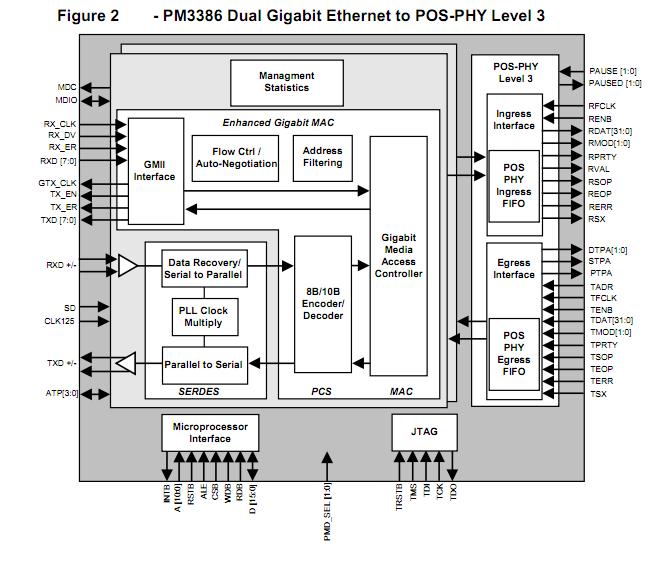

Diagrams
 |
