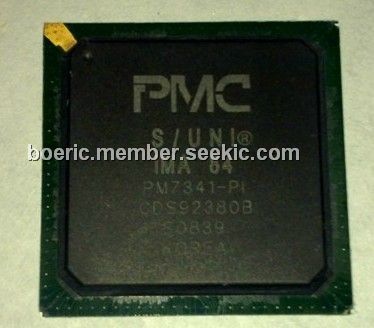

PM7341-PI

monolithic integrated circuit, BGA, -0.3V to +6.0V, ±100 mA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $20.00~25.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $20.00~25.00

PartNumber:: PM7341-PI

Brand:: PMC-Sierra, Inc - PMC | Pack: BGA | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Jason's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-03-29

From Other Seller

Part Number:PM7341-PI
US $20.00 - 25.00
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

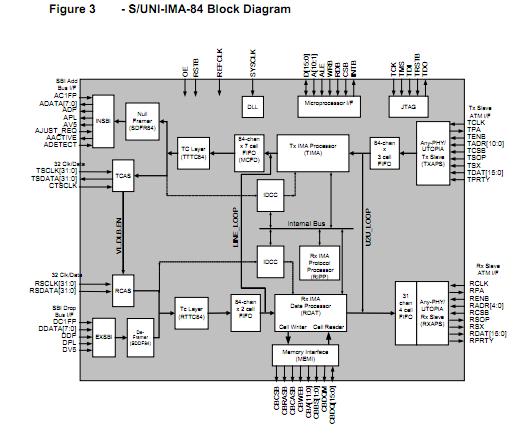

The PM7341-PI is a monolithic integrated circuit that implements the ATM Forum Inverse Multiplexing for ATM (IMA 1.1) protocol with backward compatibility to IMA 1.0 and the Transmission Convergence (TC) layer function. The PM7341-PI has two line side interface modes that determine the total number of physical links supported: the Scalable Bandwidth Interconnect (SBI) bus interface mode and the Clock and Data interface mode.

Parametrics

PM7341-PI absolute maximum ratings: (1)Ambient Temperature under Bias: -40 to +85℃; (2)Storage Temperature: -40 to +125℃; (3)1.8V Supply Voltage: -0.3V to +3.6V; (4)3.3V Supply Voltage: -0.3V to +6.0V; (5)Voltage on Any Pin(except 5V compatible): -0.3V to VVDDO+0.3V; (6)Voltage on Any Pin( 5V compatible): -0.3V to 5.5V; (7)Static Discharge Voltage: ±1000 V; (8)Latch-Up Current: ±100 mA; (9)DC Input Current: ±20 mA; (10)Lead Temperature: +230℃; (11)Absolute Maximum Junction Temperature: +150℃.

Features

PM7341-PI features: (1)ATM Forum Inverse Multiplexing for ATM Specification Version 1.1, March 1999; (2)ATM Forum Inverse Multiplexing for ATM Specification Version 1.0 – supports the method of reporting Rx cell information as in Appendix C.8 of the ATM Forum Inverse Multiplexing for ATM Specification Version 1.1 for symmetrical configurations with M=128.; (3)I.432-1 B-ISDN user network interface – Physical Layer specification: General characteristics; (4)I.432-3 B-ISDN user network interface – Physical Layer specification: 1544kbps and 2048 kbps operation; (5)DS3 Physical Layer Interface Specification, af-phy-0054.000 January, 1996; (6)ATM on Fractional E1/T1, af-phy-0130.00 October, 1999.
