Product Summary

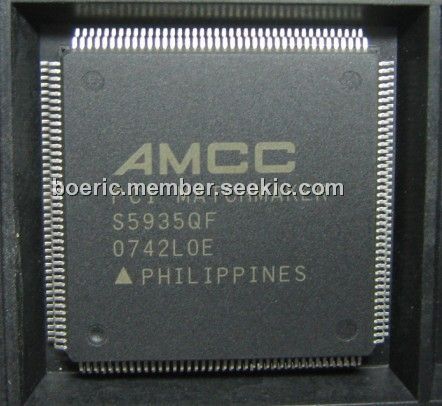

The S5935QF is a PCI 2.1 Compliant Master/Slave Device. It is suitable for High Speed Networking, Digital Video Applications, I/O Communications Ports, High Speed Data Input/Output, Multimedia Communications, Memory Interfaces, High Speed Data Acquisition, Data Encryption/Decryption, Intel i960 Interface, General Purpose PCI Interfacing and Existent S5933 Design Upgrades.
Parametrics
Absolute maximum ratings: (1)Storage Temperature: –55 to 125 ℃; (2)Supply Voltage (V CC): –0.3 to 7.0 Volts; (3)Input Pin Voltage: –0.5 V CC to + 5.0 Volts; (4)Power Dissipation: 1.05 Watts @ 33 MHz max.
Features
Features: (1)PCI 2.1 Compliant Master/Slave Device; (2)Full 132 Mbytes/sec Transfer Rate; (3)Supports new Intel 440BX/GX Chipsets; (4)Supports new WinNT Service Pack 2 & 3; (5)PCI Bus Operation DC to 33 MHz; (6)8/16/32 Bit Add-On User Bus; (7)Four Definable Pass-Thru Data Channels; (8)Two 32 Byte Internal FIFOs w/DMA; (9)Synchronous Add-On Bus Operation; (10)Mail Box Registers w/Byte Level Status; (11)Direct Mail Box Data Strobe/Interrupts; (12)Direct PCI & Add-On Interrupt Pins; (13)Optional Non-Volatile Memory Boot Loading; (14)Optional Expansion BIOS/POST Code.

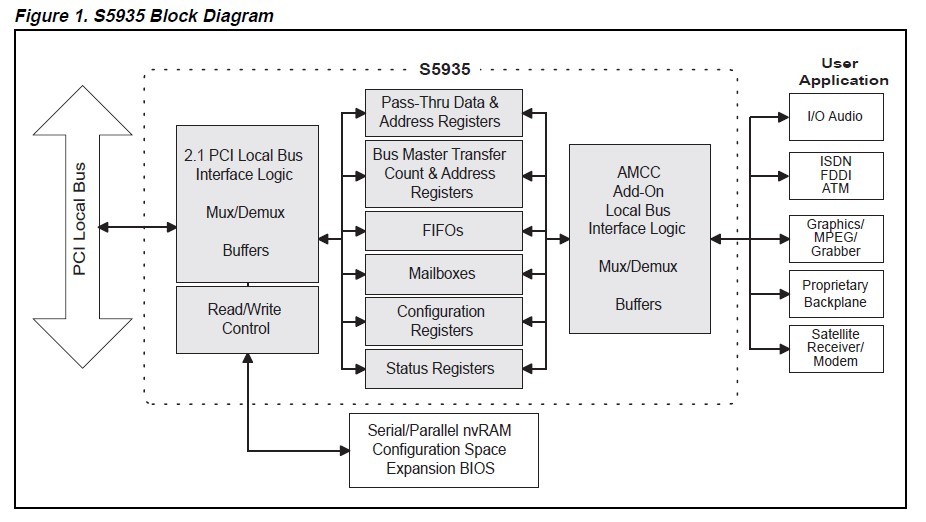

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 S5935QF |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
S5933 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
S5935 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
S5935QF |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
S593T |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
S593TR |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
S593TRW |
Other |
|
Data Sheet |
Negotiable |
|
||||
